RG 58 Extension Cable GPS Antenna Adapter To Fakra B Female Jack
Product Description:

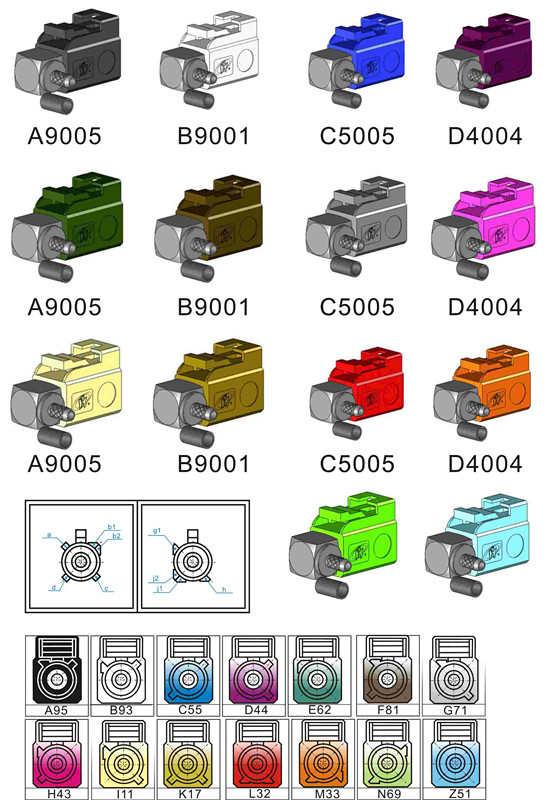

Superbat offers Automotive Coax Cable Assemblies are uesd Fakra Connectors and HSD Connectors . The Fakra Connectors and HSD Connectors feature multiple color codes for easy identification and unique keying to prevent mis - mating , meet the particular mechanical and environmental requirements of the automotive industry .The Connectors are commonly Applied to Automotive,Global Positioning Satellite,Satellite Radio,Bluetooth,Remote Vehicle Diagnostics,Infotainment Systems.
Applications :
1. Automotive
2. Global Positioning Satellite
3. Satellite Radio
4. Bluetooth
5. Remote Vehicle Diagnostics
6. Infotainment Systems
Detail Specification:
| Electrical | |
| Frequency | DC ~ 11 GHz |
| SWR | <=1.5 |
| Impedance | 50 OHM |
| Dielectric Withstanding Voltage | 1000 VRMS |
| Insulation Resistance | 1000 MΩ min |
| Contact Resistance (Center Contact) | < 20 mΩ |
| Contact Resistance (Out Contact) | < 10 mΩ |
| Insertion Loss | < 0.3 dB |
| Mechanical | |
| Mating Durability | 100 mating cycles min |
| Plastic Housing Engagement Force | |
| Engagement | 20 N |
| Disengagement | 25 N |
Offer custom made service:
If you need the pigtails with other connectors ( SMA . BNC , TNC , N , UHF , MCX , MMCX , IPX , FME ....), or other kinds of pigtails , you can contact us freely .
If you require a different mounting style , we will be happy to consider your requirements to provide a working solution .
RF coaxial cable assemblies are using for 2.4G ( WiFi , wlan ), GSM system , GPRS system , CDMA system , GPS navigation system , wireless communication system , antennas car radio , test equipment , microwave components , data transmission , LAN system , satellite transmission , and aviation equipment . For any different length of cable will be all available.
About us :
We specializes in the sale of 3G / GSM / WIFI / GPS antennas RF coaxial connectors , adapters , cable assemblies etc , and especially provides custom services for these products .
